FEATURES
- Rated AC Input/Output Active Power 20000K
- Max. AC Input/Output Apparent Power 22000VA
- Peak Power (Off-Grid) 2 times of rated power, 10 S
- Rated AC Input/Output Current 30.4/29A
- Max. AC Input/Output Current 33.4/31.9A
- Max. Continuous AC Passthrough (grid toload) 70A
- Max. Output Fault Current 66.8A
- Max. Output Overcurrent Protection 100A
- Rated Input/Output Voltage/Range 220/380V,230/400V 0.85Un-1.1Un
- Grid Connection Form 3L+N+PE
- Rated Input/Output Grid Frequency/Range 50Hz/45Hz-55Hz 60Hz/55Hz-65Hz
- Power Factor Adjustment Range 0.8 leading-0.8 lagging
- Total Current Harmonic Distortion THDi <3% (of nominal power)
- DC Injection Current <0.5% ln
Must be installed by a Qualified installer with a COC issued or warranty will be voided

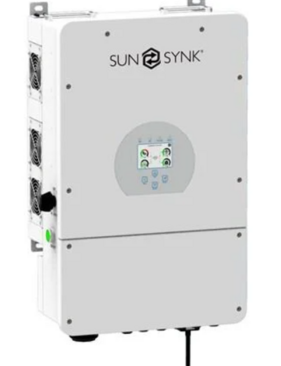

Sunsynk 20kw inverter Datasheet
If a Sunsynk inverter and Sunsynk battery are paired, then a 5-year extended on inverter warranty.
To ensure warranty on Sunsynk equipment, registration needs to take place within 7 (seven) days of installation, failure to register the warranty, may result in the warranty being voided.
https://www.sunsynk.org/warranty-registration
These Sunsynk products must be installed by a qualified electrician/technician. All installations must adhere to local wiring and installation regulations and standards and a COC issued for the install. All Warranties are carried by Sunsynk and not Full Circle Solar. Full Circle solar will facilitate where possible the warranty on behalf of its customers.
