FCS 5Kva – VM – 5000w Inverter unit High Voltage (VAT incl.)

September 18, 2017 2:43 pm Published by


SKU: FCS00062 Categories: , ,

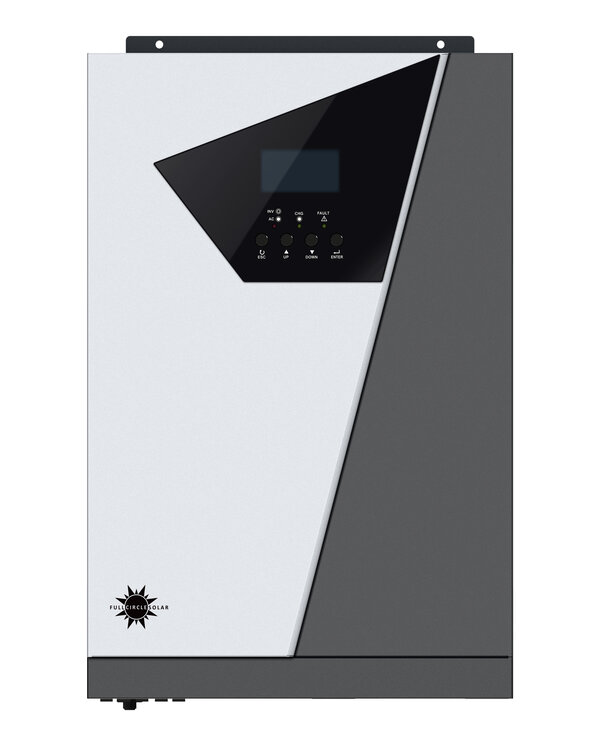

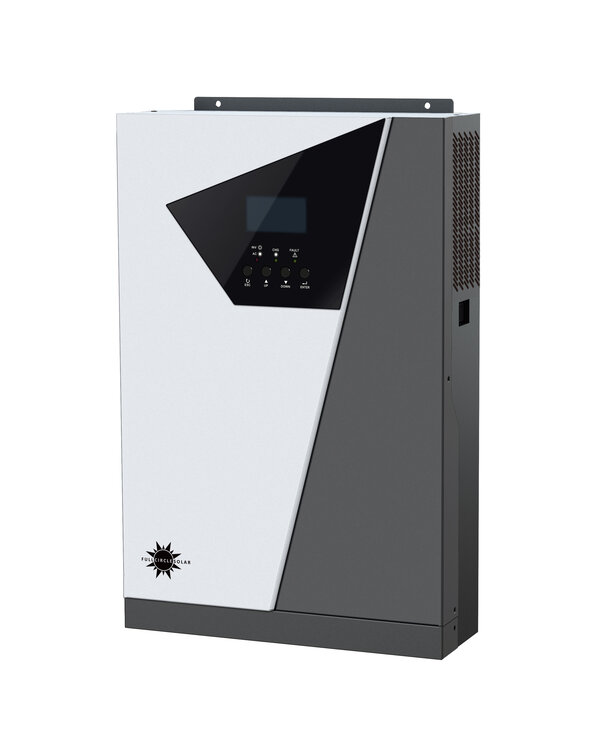

Full Circle Solar – Buy Axpert VM Inverter 5kw in South Africa

This is a multi-functional inverter/charger, combining functions of inverter, solar charger and battery charger to offer uninterruptible power support in portable size. Its comprehensive LCD display offers user-configurable and easy-accessible button operation such as battery charging current, AC/solar charger priority, and acceptable input voltage based on different applications. This unit can NOT parallel, it is a stand alone unit.


Main Features

  • Pure sine wave solar inverter
  • 450V Solar Input
  • Selectable high power charging current
  • Wide DC input range
  • Selectable input voltage range for home appliances and personal computers
  • Configurable AC/Solar input priority via LCD setting
  • Compatible to mains voltage or generator power
  • Auto restart while AC is recovering
  • Overload and short circuit protection
  • Smart battery charger design for optimizing battery performance
  • Cold start function
  • This unit can NOT parallel it is a stand alone unit
  • Recommended AC INPUT Breaker: 40A
  • Recommended AC OUTPUT Breaker: 16A


What do I need

  • 1 x 5Kva Inverter
  • 4 X 12V Battery
  • Solar panels ( Optional)
  • Battery cabinet (Optional)
  • Change Over Switch (Optional)

What can I run

  • Available 5000w
  • Can run the following continuously:
    • 20 x LED(5w) = +-100w/hour
    • LED 42 inch TV +-80w/hour
    • DSTV +-50w/hour
    • Fridge +-350l 200w/hour
    • Alarm system +-50w
    • Computer +- 350w
    • Electric Fence +-300w
    • TOTAL 1130w/hour
  • Can run the following 1 at a time:
    • Electric gate +-300w
    • Microwave +- 1300w
    • Kettle +- 1500w
    • Toaster +- 1000w

= 6 – 8 Hours run time

View User Manual

View Data Sheet VM
