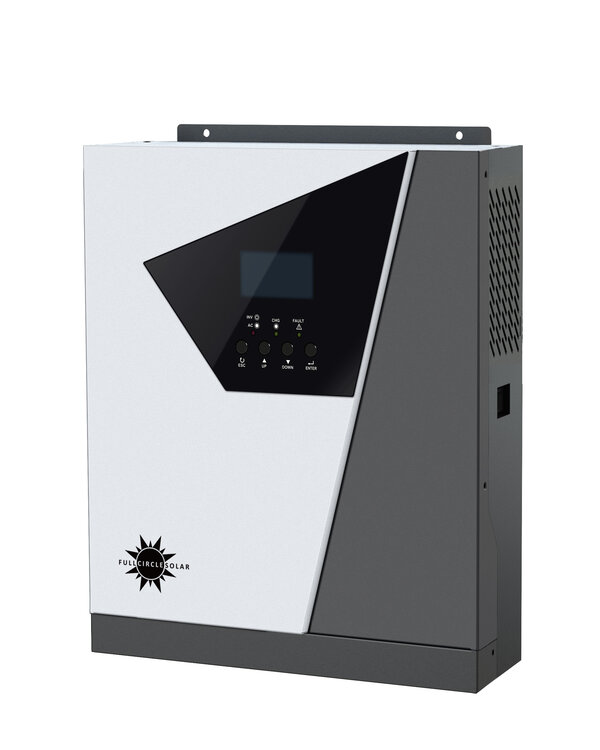

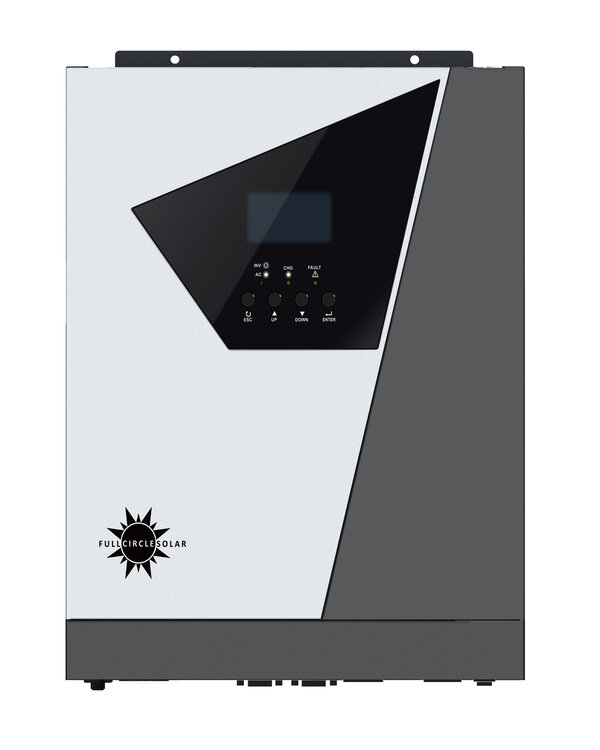

FCS 3Kva – VM – 3000w MPPT Inverter unit (VAT incl.)

September 18, 2017 2:37 pm Published by

Original price was: R7,367.00.Current price is: R7,000.00.

SKU: FCS00061 Categories: , ,

Full Circle Solar – Buy Axpert VM Inverter 3kw in South Africa

This is a multi-functional inverter/charger with Built in MPPT, combining functions of inverter, solar charger and battery charger to offer uninterruptible power support in portable size. Its comprehensive LCD display offers user-configurable and easy-accessible button operation such as battery charging current, AC/solar charger priority, and acceptable input voltage based on different applications.


Main Features

  •    Built-in 100A MPP solar charger
    • Reserved communication port for BMS (RS485, CAN-BUS or RS232)
    • Wide PV input voltage range 3000w @400Vdc
    • Battery independent design
    • Configurable AC/PV output usage timer and prioritization
    • Selectable input voltage range for home appliances and personal computers
    • Compatible to Utility Mains or generator input
    • Built-in anti-dust kit
  • Battery equalization function extends battery lifecycle
  • Recommended AC INPUT Breaker: 25A
  • Recommended AC OUTPUT Breaker: 10A


What do I need to add extra

  • 1  X 24V or 2 x 12V lithium Batteries
  • Solar panels ( Optional)
  • Battery cabinet (Optional)

What can I run

    • Available 3000w
    • Can run the following continuously:
    • 10 x LED(5w) = +-50w/hour
    • LED 42 inch TV +-80w/hour
    • DSTV +-50w/hour
    • Fridge +-350l  +- 200w/hour
    • Alarm system +-50w
    • Computer +- 350w
    • TOTAL 730w/hour


  • Can run the following 1 at a time:
    • Electric gate +-300w
    • Microwave +- 1300w
    • Kettle +- 1500w
    • Toaster +- 1000w

             = 4 – 5 Hours run time


User Manual 3VM

3Kw VM Data Sheet
